Description
Quick Overview
- 12fpsUp to 12fps Mechanical Shutter
- 20fpsUp to 20fps Silent Shutter
- 4K 120P8K RAW / 4K 120P
- In-Body Image Stabilization
- Dual Pixel CMOS AF
- Dual Card Slots
Product Description
Advanced Full-Frame CMOS Sensor
Canon has developed an entirely new CMOS image sensor for the EOS R5. Image quality is at the heart of the EOS R System and the EOS R5 is set to raise the bar in high-level still and video capture empowered by this new CMOS sensor and the new DIGIC processor.
High-Speed Shooting up to 20 fps
The EOS R5 can capture fast-moving subjects in a high-speed burst. At up to 12fps with a mechanical shutter and up to 20fps with a silent shutter, the EOS R5 can capture the split-second details between a subject’s movement.
Astonishing Autofocus and Subject Detection
The EOS R5 brings subject detection to a new level – Utilizing Canon’s Dual Pixel CMOS AF Technology, the EOS R5 will be capable of making Ultra-High-Speed Autofocus calculations to match its immensely powerful High-Speed Shooting capability of 20 fps. Subject detection adopted from the Live View AF tracking system in the EOS-1D X Mark III brings Face, Head, and even Eye-tracking when People detection is set, providing ease and accuracy when capturing stills or video. Detection of Animals will also be possible for the first time in a Canon camera, effectively tracking the whole body, face, or eye of cats, dogs, or birds for speed and precision.
Astonishing Autofocus and Subject Detection
The EOS R5 brings subject detection to a new level – Utilizing Canon’s Dual Pixel CMOS AF Technology, the EOS R5 will be capable of making Ultra-High-Speed Autofocus calculations to match its immensely powerful High-Speed Shooting capability of 20 fps. Subject detection adopted from the Live View AF tracking system in the EOS-1D X Mark III brings Face, Head, and even Eye-tracking when People detection is set, providing ease and accuracy when capturing stills or video. Detection of Animals will also be possible for the first time in a Canon camera, effectively tracking the whole body, face, or eye of cats, dogs, or birds for speed and precision.

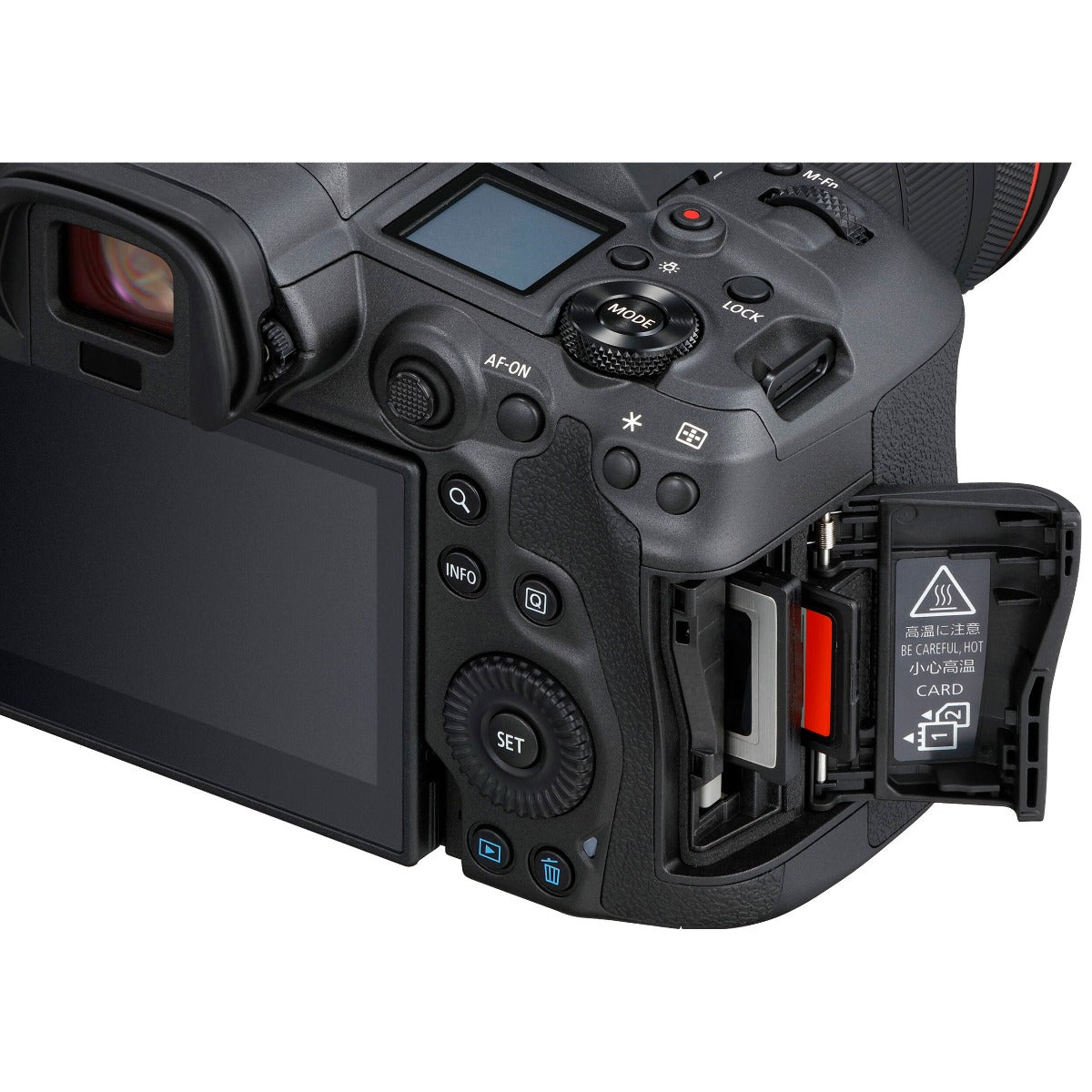

Dual Card Slots
Whether you are recording everyday images, an important photoshoot, or recording 8K video, a super-high-speed CFexpress card slot plus a UHS-II SD card slot are at your disposal.
In-Body Image Stabilization
Canon’s first camera to incorporate 5-axis IBIS (In-Body Image Stabilization), the EOS R5 will not only enhance the ability to shoot still images at slower shutter speeds but it will also help reduce camera shake when shooting movies. Additionally, the EOS R5’s IBIS will work in combination with Optical Image Stabilization found in many Canon RF and EF lenses
- 12fps Up to 12fps Mechanical Shutter
- 20fps Up to 20fps Silent Shutter
- 4K 120P8K RAW / 4K 120P
- In-Body Image Stabilization
| Lens Mount | Canon RF |
| Sensor Type | 36 x 24 mm (Full-Frame) CMOS |
| Sensor Resolution | Actual: 47.1 Megapixel Effective: 45 Megapixel (8192 x 5464) |
| Crop Factor | None |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 14-Bit |
| Image Stabilization | Sensor-Shift, 5-Axis |
| ISO Sensitivity | Auto, 100 to 51200 (Extended: 100 to 102400) |
| Shutter Speed | Mechanical Shutter 1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 0.5 Seconds |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range | -3 to 20 EV |
| White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting | Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
| Recording Modes | Raw 12-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [2600 Mb/s] H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [12 to 180 Mb/s] |
| External Recording Modes | 4:2:2 10-Bit DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p |
| Recording Limit | Up to 29 Minutes, 59 Seconds |
| Video Encoding | NTSC/PAL |
| Audio Recording | Built-In Microphone (Stereo) External Microphone Input |
| Audio File Format | AAC, Linear PCM |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) |
| Autofocus Points | Phase Detection: 1053 |
| Autofocus Sensitivity | -6 to +20 EV |
| Viewfinder Type | Electronic (OLED) |
| Viewfinder Size | 0.5" |
| Viewfinder Resolution | 5,760,000 Dot |
| Viewfinder Eye Point | 23 mm |
| Viewfinder Coverage | 100% |
| Viewfinder Magnification | Approx. 0.76x |
| Diopter Adjustment | -4 to +2 |
| Size | 3.2" |
| Resolution | 2,100,000 Dot |
| Display Type | Free-Angle Tilting Touchscreen LCD |
| Built-In Flash | No |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Hot Shoe |
| Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
| Connectivity | USB Type-C (USB 3.1), HDMI D (Micro), 3.5mm Headphone, 3.5mm Microphone |
| Wireless | Wi-Fi Bluetooth |
| GPS | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
| Battery | 1 x LP-E6NH Rechargeable Lithium-Ion |
| Dimensions (W x H x D) | 5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm |
| Weight | 1.62 lb / 738 g (Body with Battery and Memory) |
| Package Weight | 3.5 lb |
| Box Dimensions (LxWxH) | 11.1 x 9 x 6" |
